    High-low Tensial.
     11 KV Post Cap
     11 KV Post Pedestal
     22 KV Post Pedestal
     Disc Insulators caps T & C Type
     Disc Insulators caps B & S Type
     22 KV Post Cap
     Others Products
    Scaffolding.
    Forgings.

    High Low tensial porcelain insulators.

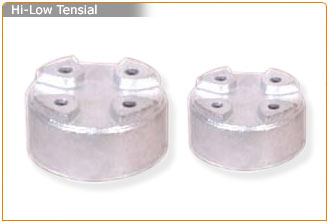

11 KV POST CAP
DESCRIPTION STD
Total Height :: 57
Top Dia :: 81
Bottom Dia :: 94
Hole Dia :: 10
Thread Length :: 14.5
PCD :: 57+-0.5
Inner Dia :: 80-81
Depth :: 42.5
Weight (Gms) :: 750
Thread Checking By Bolt :: --
Marking :: --
Remarks ::

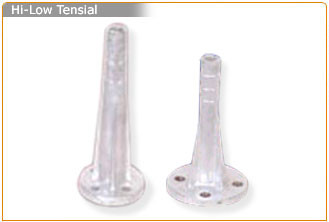

11 KV POST PEDESTAL
DESCRIPTION STD
Total Height :: 198-200
Top Dia :: 27
Bottom Dia :: 80-82
Collar Thickness :: 9.5
Hole Dia :: 12
PCD :: 57+-0.5
Weight (Gms) :: 900 Gms
Load :: 5 kN
Marking :: --
Remarks ::





22 KV POST PEDESTAL
DESCRIPTION STD
Total Height :: 198-200
Top Dia :: 28-30
Bottom Dia :: 108 + -1
Collar Thickness :: 10 + - 0.5
Hole Dia :: 15
PCD :: 76 + - 0.5
Weight (kg) :: 1.25 Kg
Load :: 9 kN
Marking :: --
Remarks ::

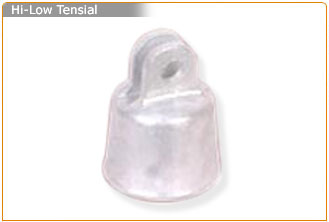

Disc Insulator Cap T & C Type
DESCRIPTION STD
Total Height :: 106
Top Dia :: 7.0
Hole Dia :: 17.5
Width (Between Collar) :: 17.5
Inner Dia :: 70
Inside Dia :: 65
Depth :: 45.5
Weight (Gms) :: 700
Tongue Pin & Cottar Pin Locking ::
Marking :: --
Remarks ::
